HABEGGER HIT-16

  • Sale
  • Regular price $880.00


Unit Includes lever tube and operating instructions.

Unit DOES NOT include Rope (Sold Separately).

Case sold separately.

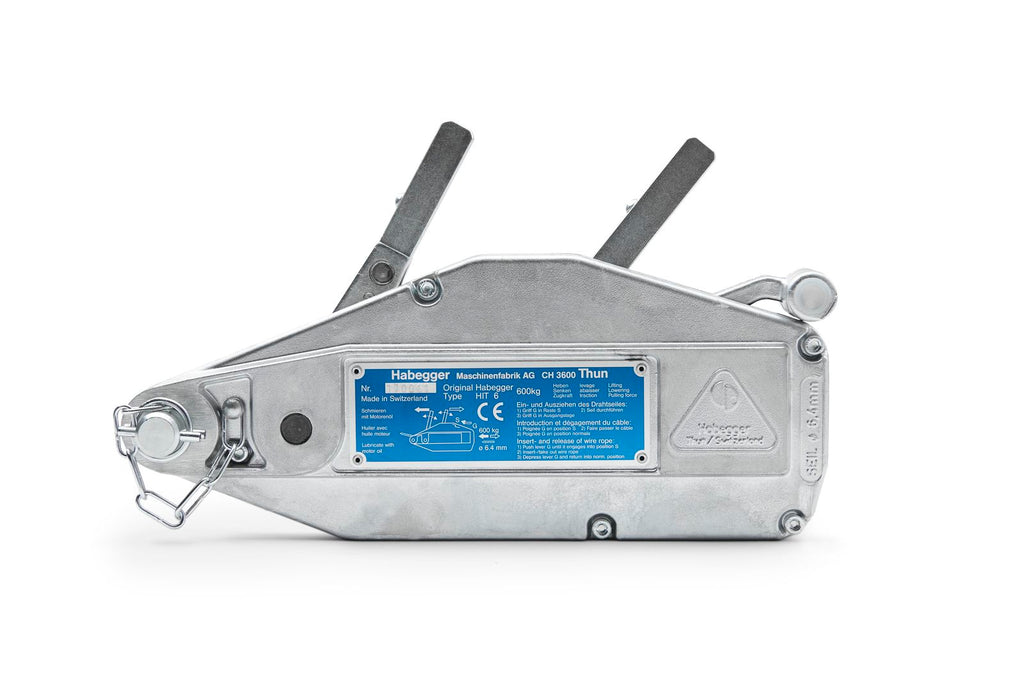

The professional wire rope hoist with a range of uses.

Powerful yet compact.

  • Light alloy housing
  • Anchorage bolts secured
  • Overload protection by shear pin
  • Exchangeable shear pins in carrying handle
  • Expansion for hydraulic drive
  • With handle
  • Lever tube can be pulled out
  • Storage case available





Technical Data                                                                          HIT-16



Rated force goods transport

Rated force persons transport

1600 kg

1200 kg

Overload protection at

2400 kg

Weight without rope

12 kg

Rope Diameter

11.2 mm

Effective rope breaking load

8000 kg

Rope feed per double stroke

60 mm

Load on lever at rated load

35 kg
